Filter tower for welding fumes
Filter tower for welding fumes instead of central hall extraction?
Filter towers are central extraction units for welding fume extraction that can be placed freely within the shop floor without a pipe system. They can be used as an alternative to hall extraction and are characterized by their high extraction capacity and quick setup thanks to their plug-and-play design. Due to its thermal properties, the warm welding fume rises to the workshop ceiling and is captured at the top of the filter tower through an intake grille. The air containing fume passes through several filter stages and is returned to the hall at floor level, cleaned and free of drafts.
When are filter towers for welding fumes used?
- For welding processes where spot extraction is not sufficient or practicable
- In case of high smoke emission
- Employee health protection
- For large workpieces
- Compliance with dust limit values TRGS 528
- Compliance with occupational health and safety regulations ArbStättV § 3a
- Simultaneous welding at several workstations
- Constant indoor air quality & air pollution control
MEDIA
Welding fumes, soldering fumes
Fumes, smoke
Dust, fine dust
PROCESSES
Welding, soldering
grinding, polishing
Proven layered ventilation principle
This principle is a proven technology for production halls and is recommended by the IFA. The contaminated air is extracted near the hall ceiling, cleaned in a filter tower and fed back into the hall near the floor without draughts. The clean air layer on the floor and the warm air containing welding fumes on the hall ceiling mix automatically due to air currents as well as the thermals of the rising welding fumes. The unit should be positioned in the center of the room or close to the sources of dust. This ensures optimal compliance with dust limits and constant improvement of the indoor air quality.
Filter tower advantages
Plug & Play
No pipe system
necessary
Up to 70% less
heating costs
High
extraction power
Long
filter service life
Draught-free
air recirculation

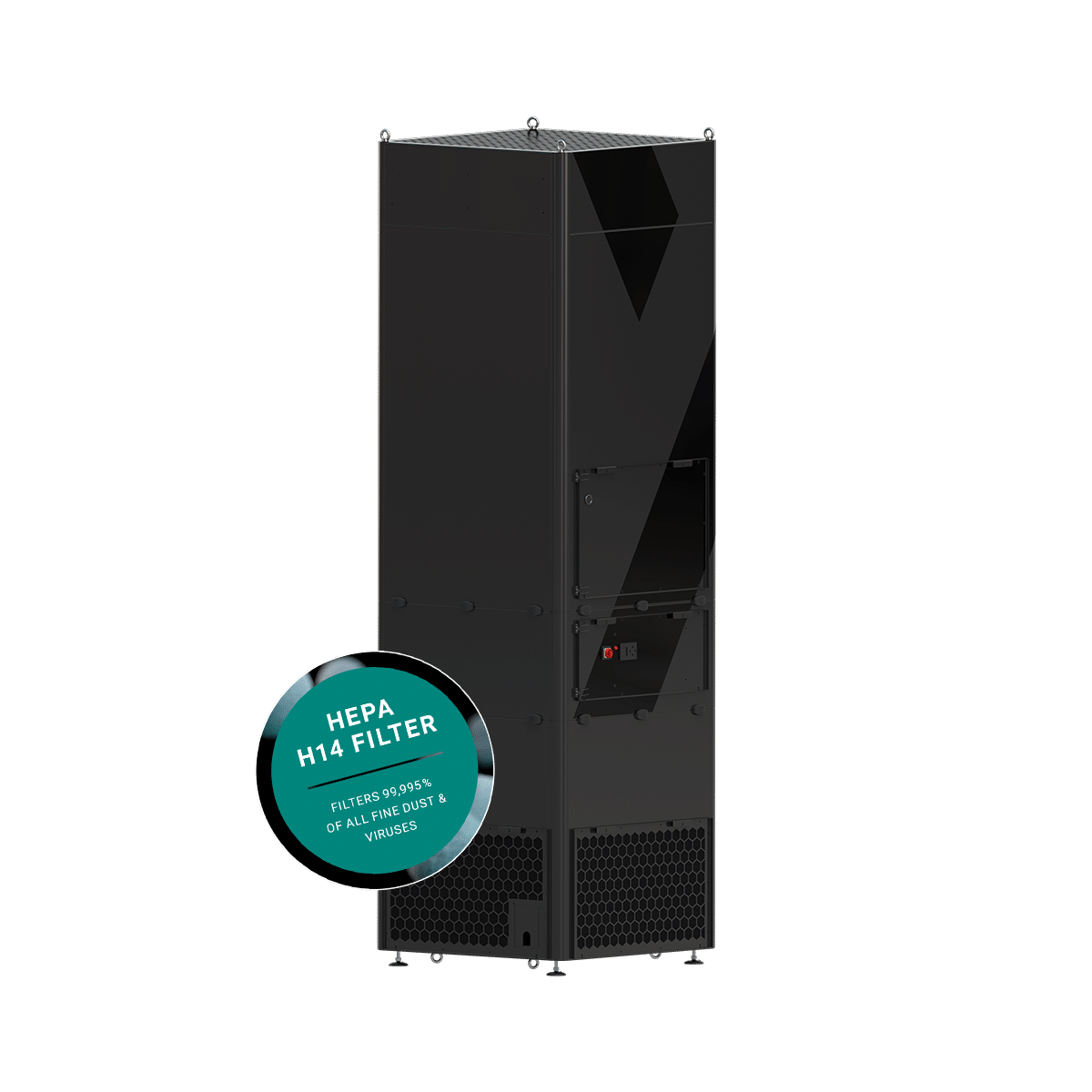

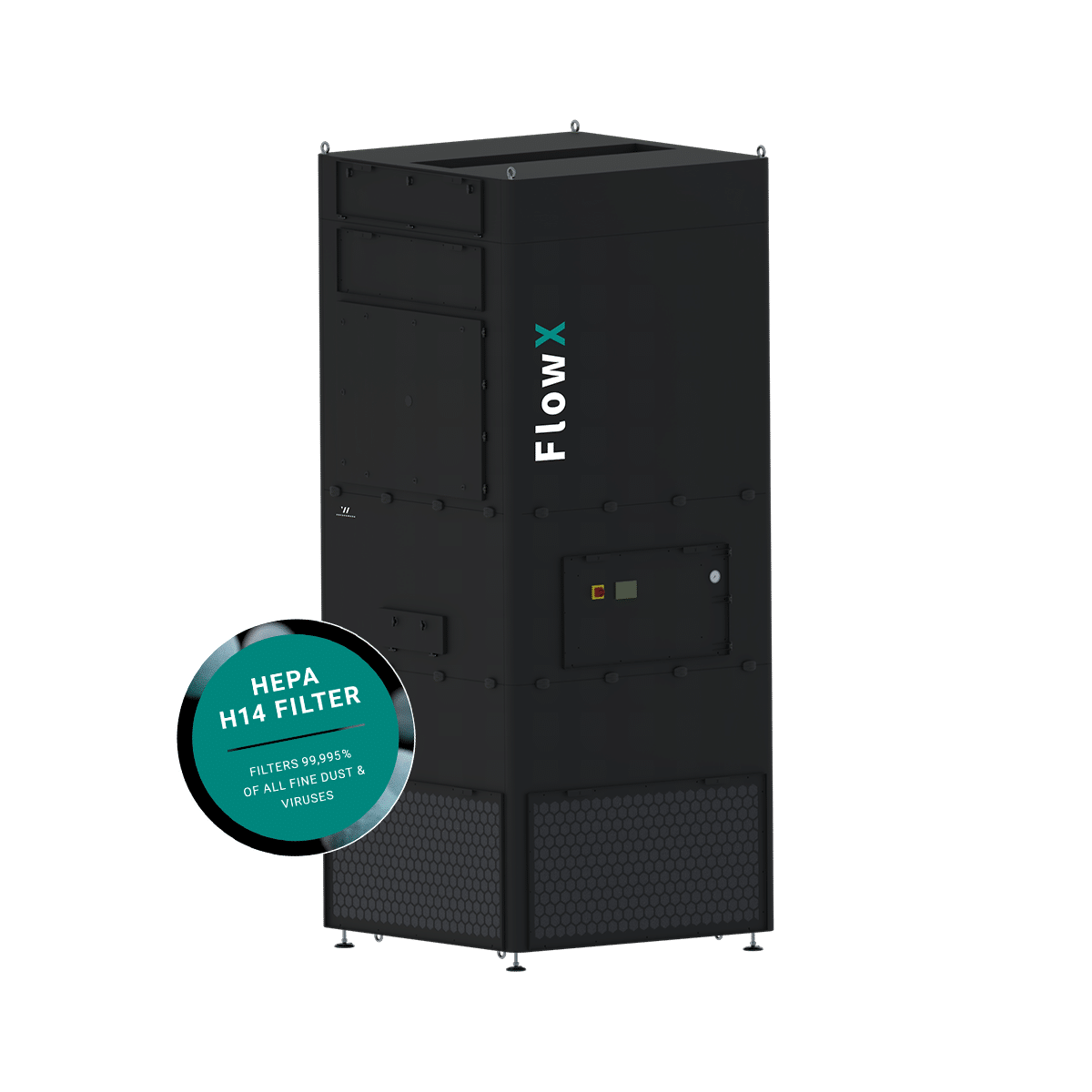

The welding fume solution from ABSAUGWERK
We develop economical and energy-saving extraction systems using state-of-the-art technology. The FlowX filter towers are equipped with durable filter components, are energy efficient and can achieve heating cost savings of up to 70%.
