Extraction arms

Extraction arms for welding, grinding and other processes

Extraction arms serve as a capture element and are connected to an extraction unit or pipe system and capture emissions such as fumes, welding fumes and dust directly at the point of origin. Due to the flow-optimized design and low resistance in the extraction arm, they are also suitable for continuous shift operation.

Extraction arms ABSAUGWERK

Selective extraction using extraction arms



  • Fast adjustment possibilities

  • Special captures for each process

  • Maximum extraction power

  • No deposits

  • No pressure loss

  • Low cleaning effort

  • Easy installation

MEDIA

Dust, smoke, vapor, oil mist, emulsion, soldering fumes, aerosols

PROCESSES

Welding, grinding, polishing, sawing, cutting, separating, turning, milling, flexing, lasering

APPLICATION

Single-user solution
Multi-user solution
Hall ventilation

Flexible extraction arms – ergonomic and efficient

Maximum efficiency and easy handling ensure a safe and ergonomic workplace. We use our technical know-how to design extraction arms with optimized flow and other collection systems, which are available in numerous options. Low resistance and smooth insides ensure consistently high suction power and minimal cleaning effort for our extraction arms.

Extraction arms in ATEX design are completely electrically conductive and suitable for the selective extraction of explosive dusts and gases (in accordance with ATEX Directive 2014/34/EU). All extraction arms are delivered fully assembled and tested.

Extraction arms

Smooth-running extraction arm with PVC hose
and plastic hood with handle

Solid extraction arm with aluminum tube
with energy-saving throttle valve

Solid extraction arm with aluminum tube
in ATEX design

Individual configuration of extraction arms

The joints with light guidance offer maximum flexibility and a large radius of action. The extraction arms can be guided into the correct working position with just one hand and are held there permanently. The adjustable hoods reduce tracking and make alignment even more precise. As every process and the material to be processed has different requirements, we offer our extraction arms in all common diameters, different lengths and different sizes. (2–9 meters) hoods, hose or pipe in various designs.

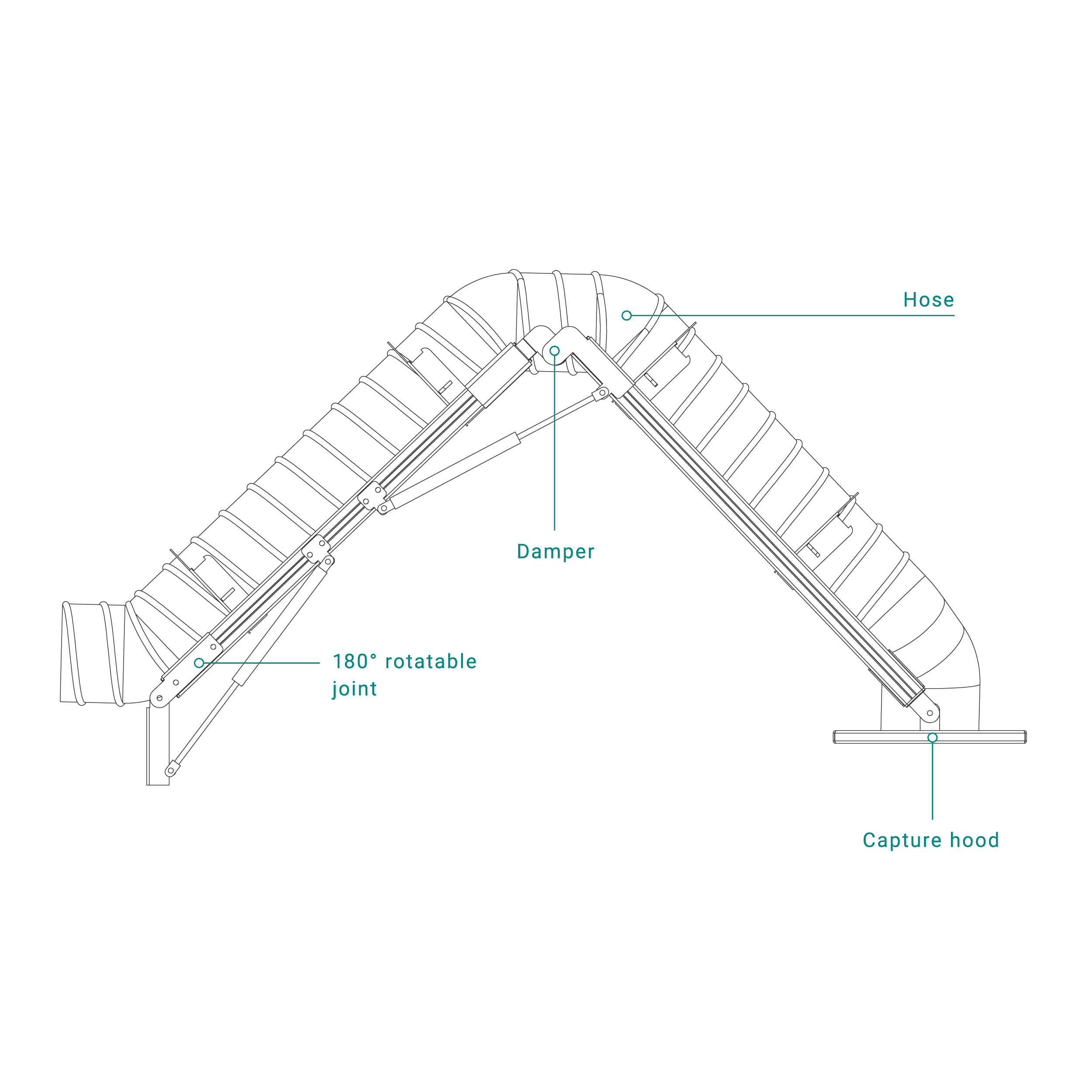

Structure of the deduster

Options & variants extraction arms

LIGHTING

Perfect working light

START BUTTON

Position on extraction hood

VARIOUS CONSTRUCTION

Individual as desired

EXPLOSION PROTECTION

ATEX execution

360° WORKING RADIUS

Optimal setting

VARIOUS ACQUISITIONS

Funnel hood, flat hood, Coanda hood and much more

PU HOSE

High flexibility

SOLID PIPE

Steel or aluminum

CANTILEVER

Practical extension

Fire and explosion protection
at ABSAUGWERK

Flammable and explosive media such as gas, steam, mist or dust can cause serious fires and violent explosions. Our extraction arms are therefore equipped with special fire and explosion protection components and offer safe operation:



  • Flow-optimized design
  • No deposits
  • External joints
  • ATEX execution (electrically conductive)
Explosion protection

Fast installation

We offer a wide range of connections for our extraction arms, such as fans, central or mobile extraction units, filter units, pipe systems or hall ventilation systems. However, the arms can also be easily attached to existing systems and are thus quickly ready for use We offer a wide range of mounting options for our extraction arms:

  • Ceiling mount
  • Floor mounting
  • Wall mounting
  • Extraction slot channel (various versions)
  • Connection to extraction or pipe systems
