EXTRACTION TABLES
WT SERIESAbsaugtische für Schweißen, Schleifen, Kleben und vieles mehr…

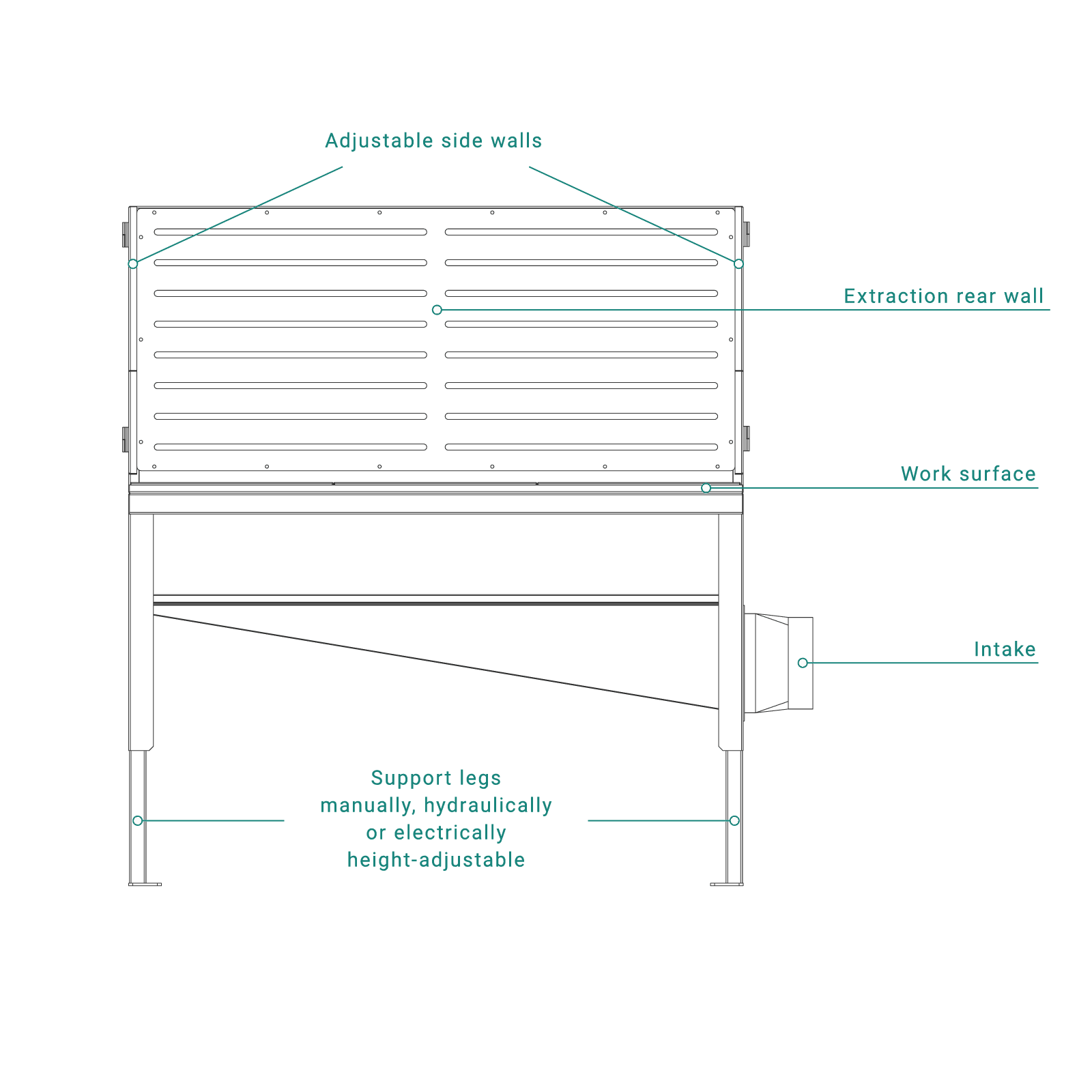

Absaugtische werden als Werkbänke mit integrierter Absauganlage für Arbeiten wie Schleifen, Sägen oder Schweißen genutzt. Dabei erfassen sie entstehende Medien wie Staub, Rauch oder Späne sicher und effizient. Grobes Material fällt direkt nach unten in einen Austragsbehälter. Feine Partikel werden über die Rücksaugwände erfasst und in einer Absauganlage gefiltert. Durch die flexiblen Seitenwände können auch große Werkstücke problemlos bearbeitet werden.
Work tables with integrated extraction system
Whether as a welding table, soldering table, gluing table, sanding table, finishing table or painting table – our extraction tables are multifunctional and modular. As a manufacturer of extraction tables, we also supply the appropriate extraction unit including pipe system.
-
Individually configurable and expandable
-
Folding side panels for large workpieces
-
Ergonomic with plenty of legroom
-
Easy disposal of the discharge
-
Numerous options
-
Extraction tables for every type of extraction unit
-
Quality made in Germany, directly from the manufacturer
Processes
Grinding, welding, soldering,
bonding, flexing, polishing,
cutting, sawing, deburring,
painting, cleaning (11 units)
MEDIA
Dust
Smoke
Chips
Vapors
WT series extraction tables
The extraction tables in the WT series are ergonomically designed and available in various sizes with numerous options such as lighting, wheels and different supports. The large legroom and hydraulic height adjustment make them a comfortable workbench for clean processing of your workpiece.
Flexible
expandable
Technical data extraction tables
Width: 1,000–3,000 mm
Depth: 980 mm
Height (without rear panel): 680–980 mm
Empty weight: 60–260 kg
Options
- Various supports
- Mobile with wheels
- LED lighting (also in ATEX execution)
- Vice holder
- Hydraulic height adjustment
- Extraction via rear wall or side wall
- Tool holder
- Roof
PLASTIC
GRATING
WOOD
PLASMA
